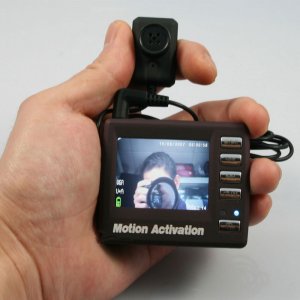

The World's Smallest Color Pinhole Camera built-with this Button & Screw . When put this normal button with your clothes lets you record exactly what you are looking at. No external power needed , just connect it directly with Mirco DVR to hidden recording by Automatically (If have human's removal action, this system can automatically catch it; if human disappear ,the system automatically turn off.) so you will not miss any action. It is also great as a surveillance camera, a toy for hobby enthusiasts, as body worn solutions and so on.
Specification of Mini DVR
2.0 inch TFT LCD Screen With 640×240 Resolution
Directly Connect and Power an external camera
AV in/out via RCA cable
Time/Date stamp on each recording
Records directly to removable SD card
SD card slot accommodates up to 4G Mini SD card
MPEG4 Video Encoding
USB 2.0 interface
Interchangeable standard mobile Li-ion Battery
Main unit size: 67×55×15mm
Frame Rate: 30fps
Built-in Flash Memory:〈 45MB
Induction time: 0.5sec
USB jack: High-speed USB2.0
DC Input: DC 5V 1A
Battery pock capacity: 3.7V 720mAh
SD card: Mini SD, Supports 32MB up to 4GB
Power output of Camera: DC 5V 300mAh
AV Input jack: 3 rings with 2.5
AV Output jack: 3 rings with 2.5
Language: English
Mini Camera
Imaging Sensor: 1/3 -inch CMOS
CMOS Total Pixels: 628×582 (PAL) / 510×492 (NTSC)
Horizontal Resolution: TV Lines 420
View Angel: Degree (o) :62
Minimum Illumination: 1.5Lux / F1.5
Dimensions ( W×L X H) : 34×22×15 mm
MINI SD memory card capacity: (for 2GB)
Resolution
640 x 480
320 x 240
160 x 120
Video (no Audio)
Approx. 68 min
Approx. 212 min
Approx. 690 min
Video+Audio
Approx. 55 min
Approx. 200 min
Approx. 660 min
Package Contents
1x Motion Activation Camera
1x Digital Screen 2.0 TFT LCD
1x English User Manual
1x AV In/Out Cable
1x USB Cable
1x Universal Charger
1x Battery 900mAh Li-Polymer
1x Driver CD
1X AV In Cable
1X 4GB Mini SD Card
Interchangeable Buttons and screws:
4x 20mm buttons with 4 holes
2x 20mm buttons with 5 holes
4x 15mm buttons with 4 holes
2x 15mm buttons with 5 holes
1x 8mm metal screw
1x 8mm Plastic Screw
